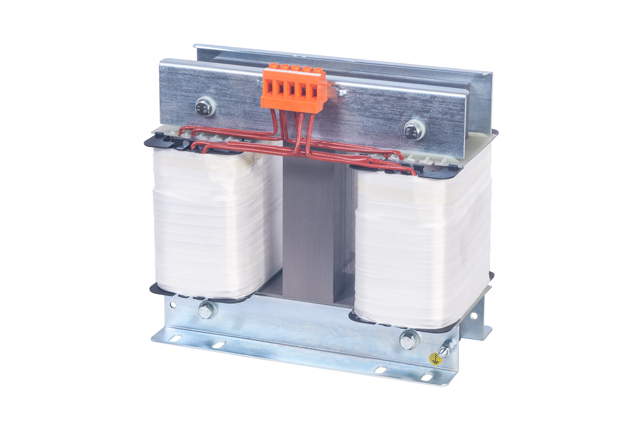

Three-monophase transformers

Stacks Image 893

Power range up to 1.000KVA


Three-monophase transformers are designed to allow the connection of a monophase load to three-phase line even when the neutral point in not available; they are built upon request with power and voltage values for primary and secondary windings specified by the Client's needs.
They are impregnated with anti-mold resin which makes them suitable for very humid environments, also improving heat dissipation and electrical insulation.
These transformers are compliant to insulation and separation transformers’ standards.


Stacks Image 5981

Technical Specifications:

  • Standard: IEC 61558-1, IEC 61558-2-1, IEC 61558-2-4, IEC 61558-2-6
  • Thermal insulation Class: F
  • Maximum Ambient Temperature for standard construction: 40° C
  • Protection Grade: IP00
  • Suitable for installation up to: IP2x
  • Test: in accordance with appropriate standards
  • Screw terminals
