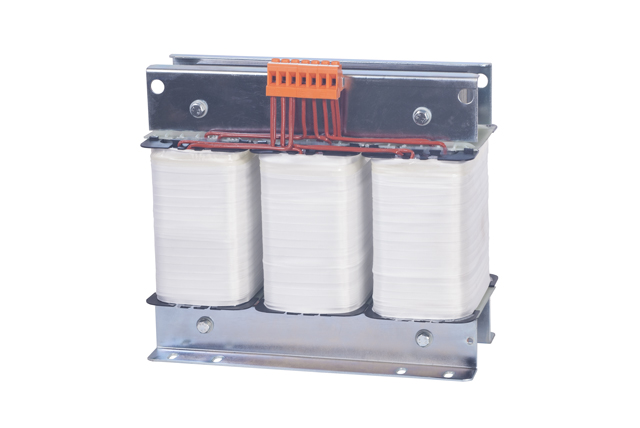

Static Balancers and Earthing Transformers

Power range up to 500 KVA

The Static Balancer and the Earthing Transformer are used to recreate the neutral point from a supply line which doesn't include one. The Earthing Transformer is used when the line needs to be connected to the ground point, while the Static Balancer is generally used to connect one or more monophase loads between the threephase line and the neutral point, keeping the monophase voltage value balanced regardless of the number of connected loads.

Technical Specifications:

• Standards: IEC 61558-1 , IEC 61558-2-13
• Thermal insulation Class: F, H (based on construction)
• Protection Degree: IP00
• Suitable for installation up to: IP20
• Dielectric rigidity test: in accordance with the IEC standard
• Frequency: 50-60Hz
• Nonflammable nylon screw terminals or metal bars connection
