Electromagnets for vibrating bases
Electromagnets are used in the construction of vibrating bases (electromagnets for oscillating systems, industrial vibrators), they supply the movement used to move and correct the orientation of various items to feed automated lines of production.
They can be used to build circular, conical or linear vibrating bases.
All the electromagnets are encapsulated in epoxy resin and an aluminium case is available for a better fixing.
Various sizes are available in our production line, our experience enables us nonetheless to produce custom constructions in order to suit other Client requests.
We also build demagnetizers.
Technical Specifications:
- Standard: IEC 61558-1
- Thermal insulating Class: B / F
- Protection Degree: IP00
- Suitable for installation up to: IP20
- Frequency: 50-60Hz
- Electrical Protection Class: I/II
- Connection with flexible cable or latching connector
Download our Electromagnets Catalogue
Version 2017-B
7 pages
Italiano / English
Adobe Acrobat (PDF)
1.1 mb
More images of our production:

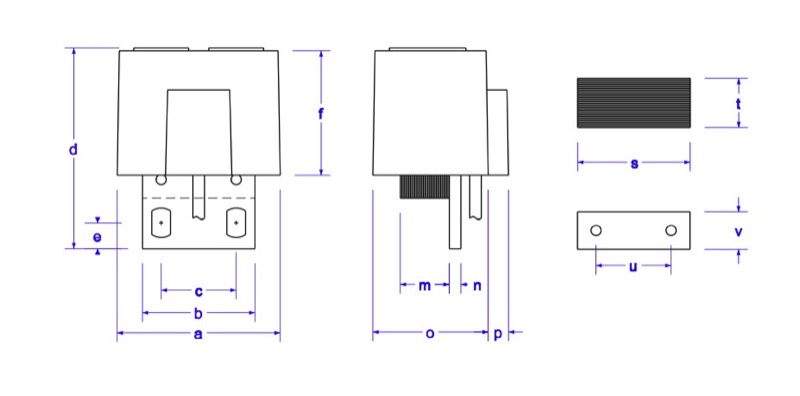

DU vertical fixing
| Cod. | a | b | c | d | e | f | Ø | m | n | o | p | s | t | u | v |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DU1304 | 56,5 | 39 | 26 | 69,5 | 9 | 43 | 10x6,5 | 17 | 4 | 40 | 7 | 39 | 17 | 26 | 13 |
| DU1606 | 69 | 48 | 30 | 81,5 | 9 | 49,5 | 10x6,5 | 22 | 4 | 48 | 7 | 48 | 22 | 32 | 16 |

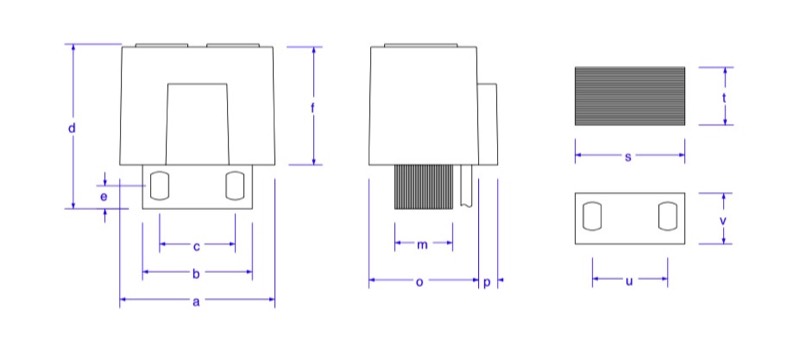

DU low profile
| Cod. | a | b | c | d | e | f | Ø | m | n | o | p | s | t | u | v |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DU1308L | 56,5 | 40 | 27,5 | 60 | 8,4 | 43 | 10x6,5 | 21 | - | 40 | 7 | 40 | 21 | 27,5 | 18,5 |
| DU1610L | 69 | 50 | 34 | 69,5 | 8,5 | 49,5 | 10x6,5 | 26 | - | 48 | 7 | 50 | 27 | 34 | 20 |
| DU2010 | 88 | 60 | 40 | 80 | 10 | 61 | 4,5 | 30 | - | 60 | 10 | 60 | 30 | 40 | 20 |
| DU2208 | 94 | 66 | 44 | 88 | 11 | 66 | 5,5 | 30 | - | 66 | 8 | 66 | 30 | 44 | 22 |

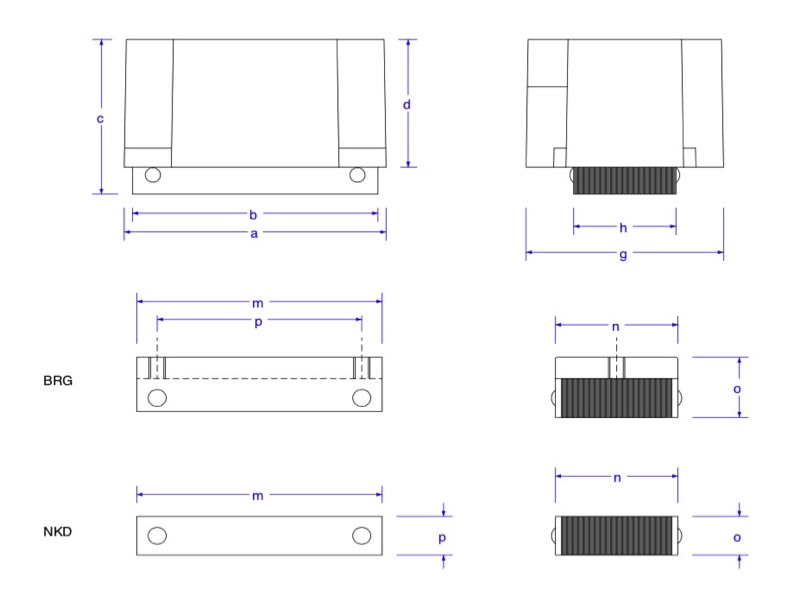

DA customizable fixing
| Cod. | a | b | c | d | g | h | BRG | NKD | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m | n | o | p | q | m | n | o | |||||||
| DA2220 | 68 | 66 | 43 | 35 | 68 | 42 | 66 | 41 | 16 | 30 | M5 | 66 | 45 | 11 |
| DA2807 | 91 | 84 | 55 | 49 | 65 | 35 | 84 | 34 | 21 | 64 | M6 | 84 | 38 | 14 |
| DA2812 | 91 | 84 | 55 | 49 | 73 | 40 | - | - | - | - | - | 84 | 43 | 14 |
| DA3208 | 101 | 96 | 64 | 54 | 75 | 40 | - | - | - | - | - | 96 | 43 | 16 |
| DA4010 | 128 | 120 | 80 | 66 | 96 | 50 | 120 | 56 | 31 | 100 | M8 | 120 | 60 | 20 |
| DA4020 | 128 | 120 | 80 | 66 | 126 | 60 | 120 | 60 | 28 | 80 | M8 | 120 | 65 | 20 |
| DA4040 | 128 | 120 | 80 | 66 | 126 | 80 | 120 | 86 | 31 | 100 | M8 | 120 | 86 | 20 |
| DA5030 | 160 | 150 | 100 | 90 | 154 | 80 | - | - | - | - | - | 150 | 85 | 25 |
| DA5050 | 160 | 150 | 100 | 90 | 174 | 100 | - | - | - | - | - | 150 | 105 | 25 |
| DA6050 | 190 | 180 | 120 | 106 | 185 | 106 | - | - | - | - | - | 180 | 120 | 30 |
| DA6070 | 190 | 180 | 120 | 106 | 205 | 106 | - | - | - | - | - | 180 | 140 | 30 |
| DA60C2 | 190 | 180 | 120 | 106 | 255 | 106 | - | - | - | - | - | 180 | 190 | 30 |
| DA80C0 | 242 | 240 | 160 | 130 | 262 | 180 | - | - | - | - | - | 240 | 190 | 40 |
| DAC090 | 307 | 300 | 200 | 162 | 305 | 190 | - | - | - | - | - | 300 | 200 | 50 |

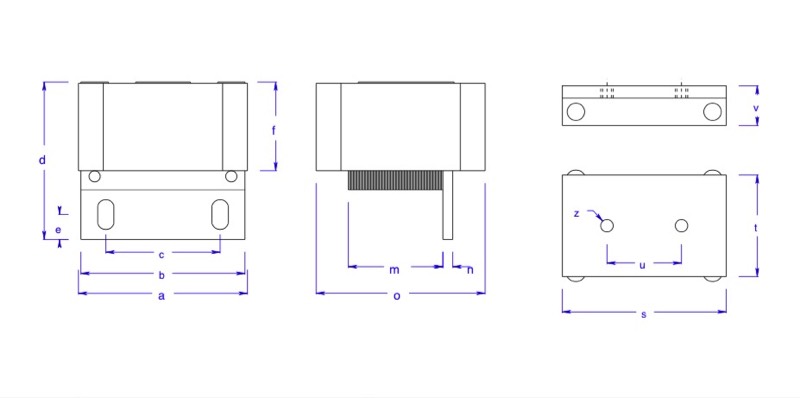

DA vertical fixing
| Cod. | a | b | c | d | e | f | Ø | m | n | o | s | t | u | v | z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DA2216-18 | 68 | 66 | 46 | 63,5 | 10 | 35,5 | 6,5x12 | 38 | 4 | 68 | 66 | 41 | 30 | 16 | M5 |
| DA2802-18 | 91 | 90 | 30 | 85 | 11 | 49 | 8,5x14 | 30 | 5 | 65 | 84 | 35 | 64 | 21 | M6 |

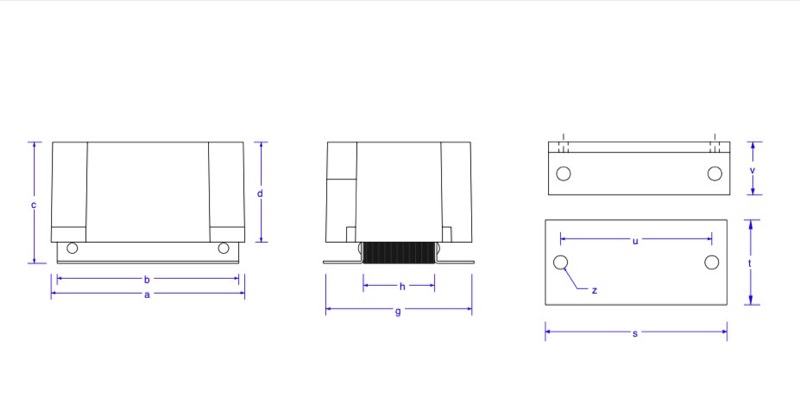

DA low profile
| Cod. | a | b | c | d | g | h | s | t | u | v | z | t | u | v | z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DA2220-20 | 80 | 80 | 47,5 | 32 | 80 | 42 | 66 | 41 | 30 | 16 | M5 | 41 | 30 | 16 | M5 |
| DA2803-20 | 91 | 90 | 55 | 49 | 98 | 31 | 84 | 34 | 64 | 21 | M6 | 35 | 64 | 21 | M6 |
