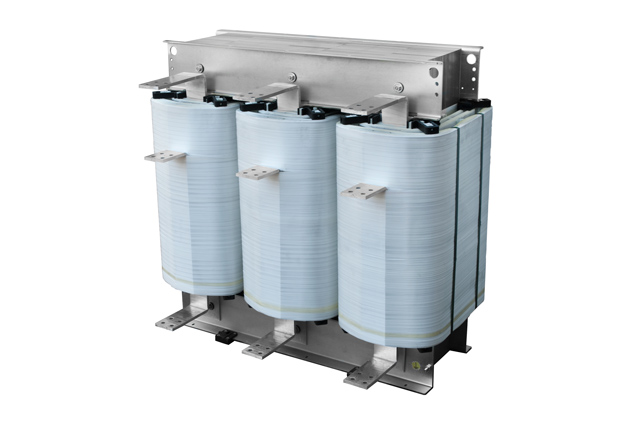

Autotransformers - Monophase and Threephase

Stacks Image 893

Power range up to 1.000 KVA


The autotransformers are generally used when adaption of the line voltage to the nominal value of a machine or a motor is necessary; it is also used in all the cases where, either for the use or the standard applied, the galvanic separation between primary and secondary windings is not needed. The use of an autotransformer in place of a transformer has also an economical advantage, which increases as the voltage difference between input and out voltage gets smaller.


Stacks Image 10275

Stacks Image 10379

Stacks Image 5925
Stacks Image 5928

Technical Specifications:

  • Standard: IEC 61558-1, IEC 61558-2-13
  • Thermal insulating Class: F, H (based on construction)
  • Protection Grade: IP00
  • Suitable for installation up to: IP23 (IP54 upon request)
  • Dielectric rigidity test: in accordance with IEC standard
  • Frequency: 50-60Hz
  • Nonflammable nylon screw terminal connection


The transformers are usually built for vertical/floor mounting, but they can be also built for horizontal/wall mounting.

Stacks Image 33393

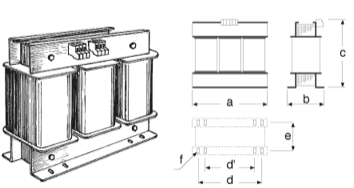

Vertical/floor mounting

Stacks Image 33398

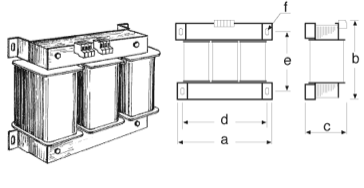

Horizontal/wall mounting
