Single-phase boxed transformers with terminals (also on DIN rail) or microfaston
Power 1VA ÷ 60VA

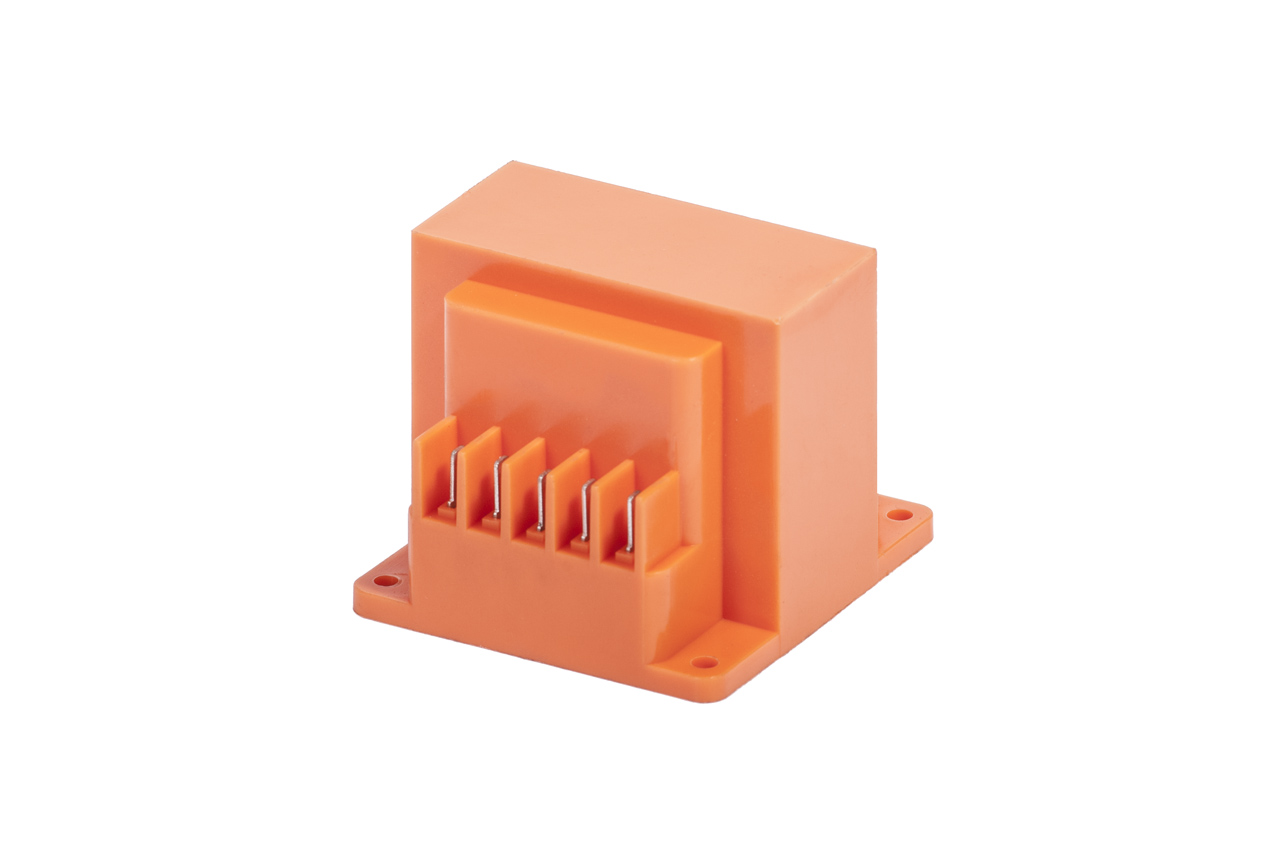

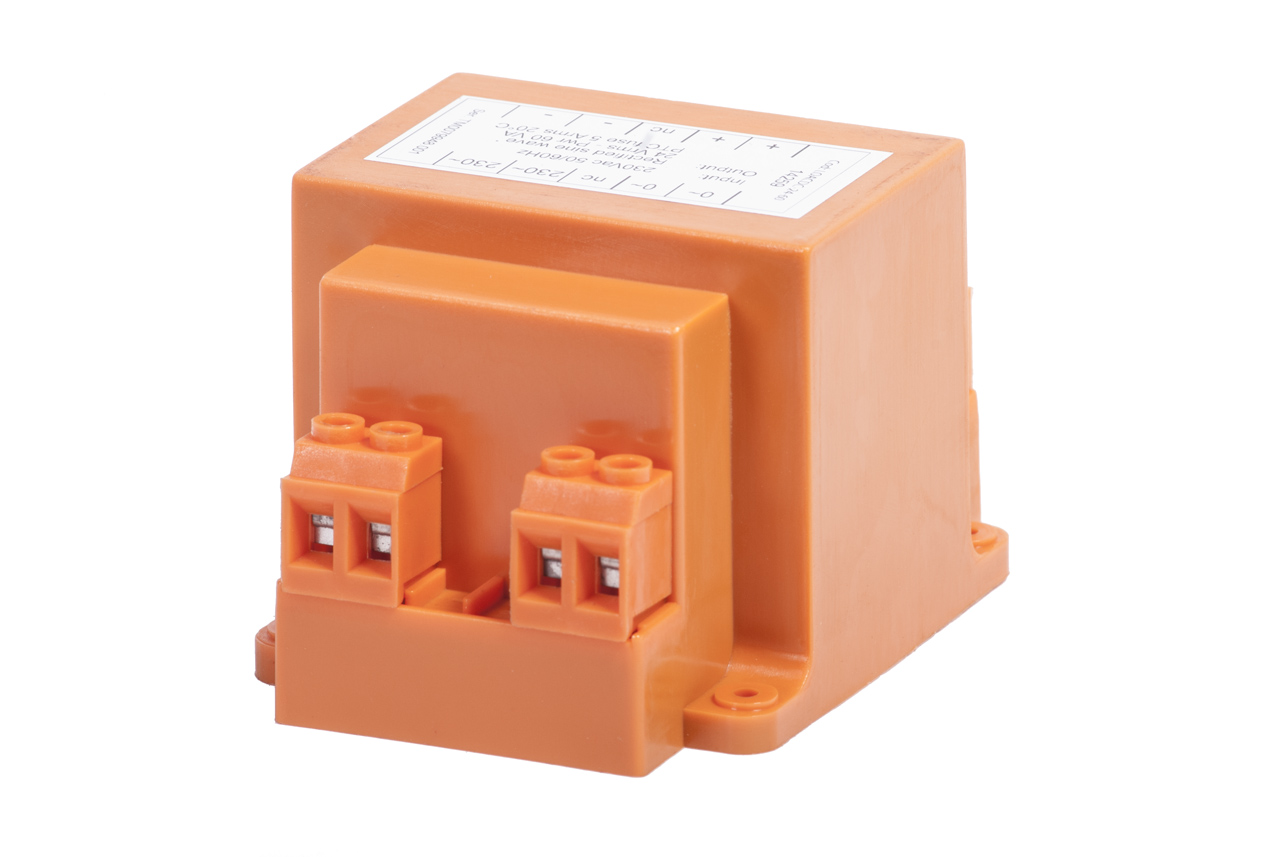

These transformers are encapsulated in epoxy resin inside a heat-resistant nylon box. For smaller powers, connection via microfaston contacts is available, while for higher powers there are nylon-covered terminals. They are generally built with voltages specified by the Customer and comply with IEC 61558 standards in its possible variants: separation, control, isolation and safety.
| Technical characteristics | Value |
|---|---|
| Reference standards | IEC 61558-1, IEC 61558-2-1, IEC 61558-2-4, IEC 61558-2-6 |
| Thermal insulation class | B |
| Ready for Protection class | II |
| Dielectric strength test | According to standards |
| Frequency | 50-60Hz |
| Connections | With non-flammable Nylon terminals or microfaston tips |
