Single-phase and Three-phase PCB mount and low profile transformers
Power 1VA ÷ 60VA

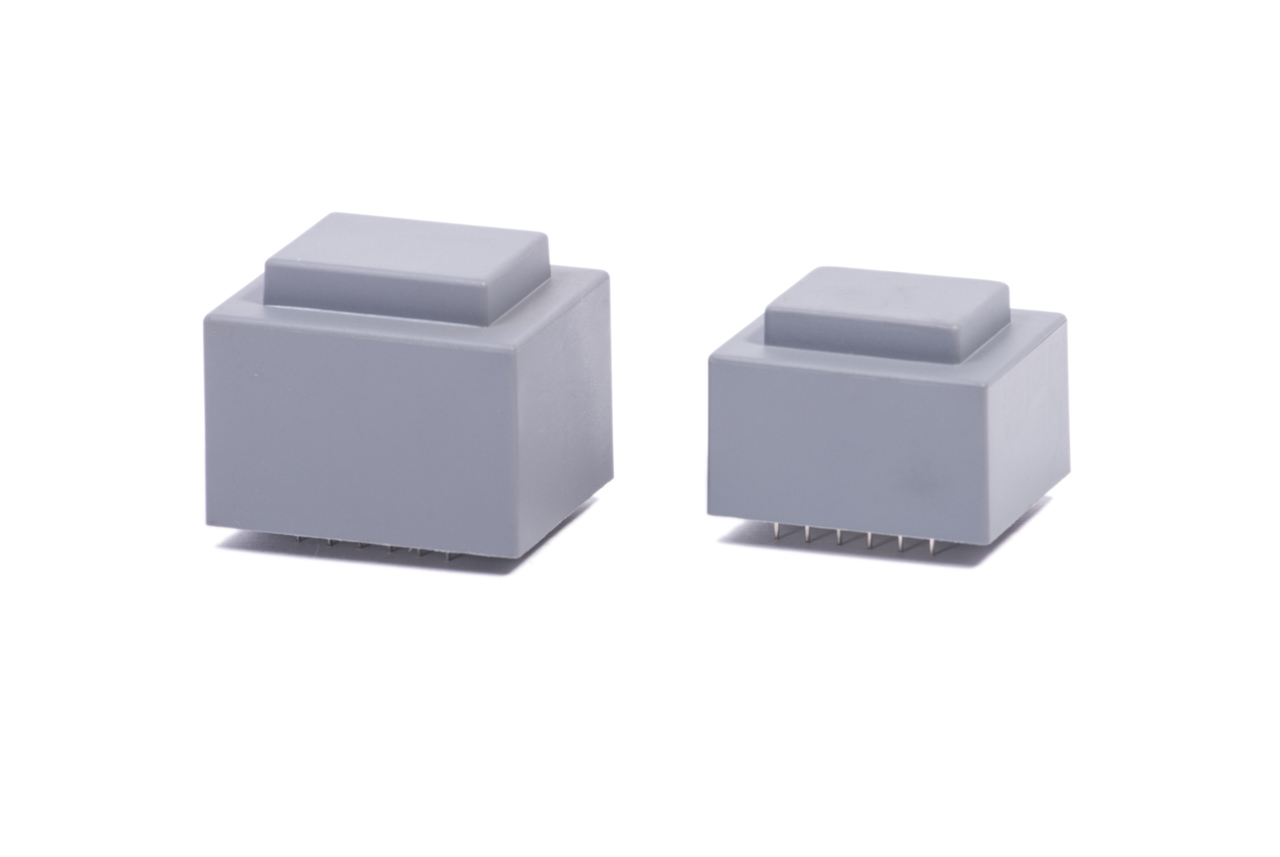

We manufacture boxed transformers with power up to 60VA. They are made for professional applications where high reliability with very small dimensions is required. Transformers are encapsulated in insulating housings with epoxy resin and are custom-built with voltage values indicated from time to time by the Customer. The connection terminals consist of steel pins to be soldered directly to the printed circuit board.

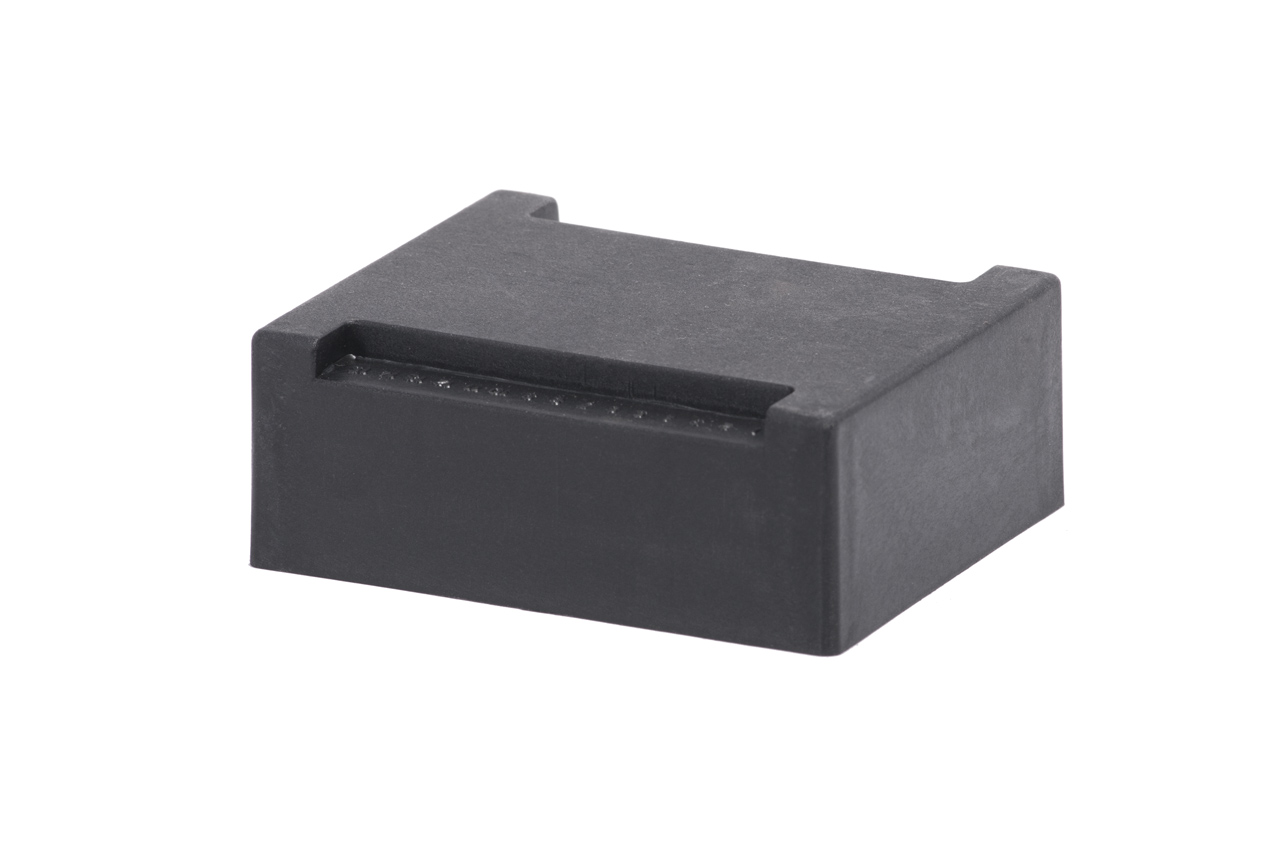

We are proud to have in our product range a three-phase transformer for printed circuit board encapsulated in insulating housings with epoxy resin for protection, while the connection with the printed circuit board is ensured by robust steel terminals. The low profile design ensures easy placement in printed circuit board design. The maximum nominal power for this type of transformers is 24VA.
| Technical characteristics | Value |
|---|---|
| Reference standards | IEC 61558-1, IEC 61558-2-1, IEC 61558-2-4, IEC 61558-2-6 |
| Thermal insulation class | B |
| Ready for Protection class | II |
| Dielectric strength test | According to standards |
| Frequency | 50-60Hz |
| Connections | With pins to be soldered |
